Wedge wire screen welding machine
Our wedge wire screen welding machine use the world famous brand parts, it makes our machine very good quality , very low problem rate. Our machine main body use the cast iron, Our cast iron machine body will keep for more than 6month, to insure release the internal stress.
Below is our main parts brands
1.Siemens (Germany) PLC program
2.Weinview ( Taiwan ) touch panel
3. Schneider ( France ) low voltage apparatus&air switch
4. Omron ( Japan ) power supply
5. Siemens ( Germany ) servo driver
6. Siemens ( Germany ) servo motor
7. TBI ( Taiwan) ball screw
8. HIVIN ( Taiwan ) linear rail
Video link

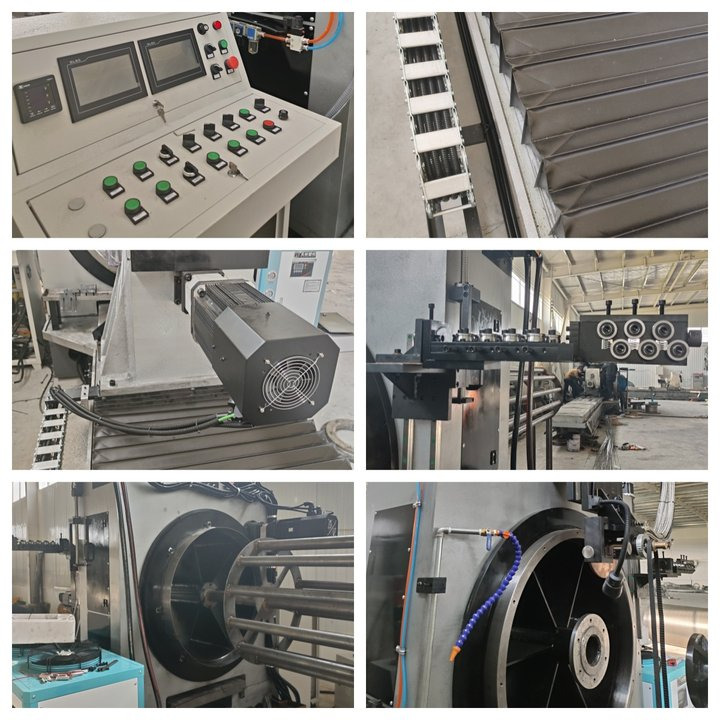

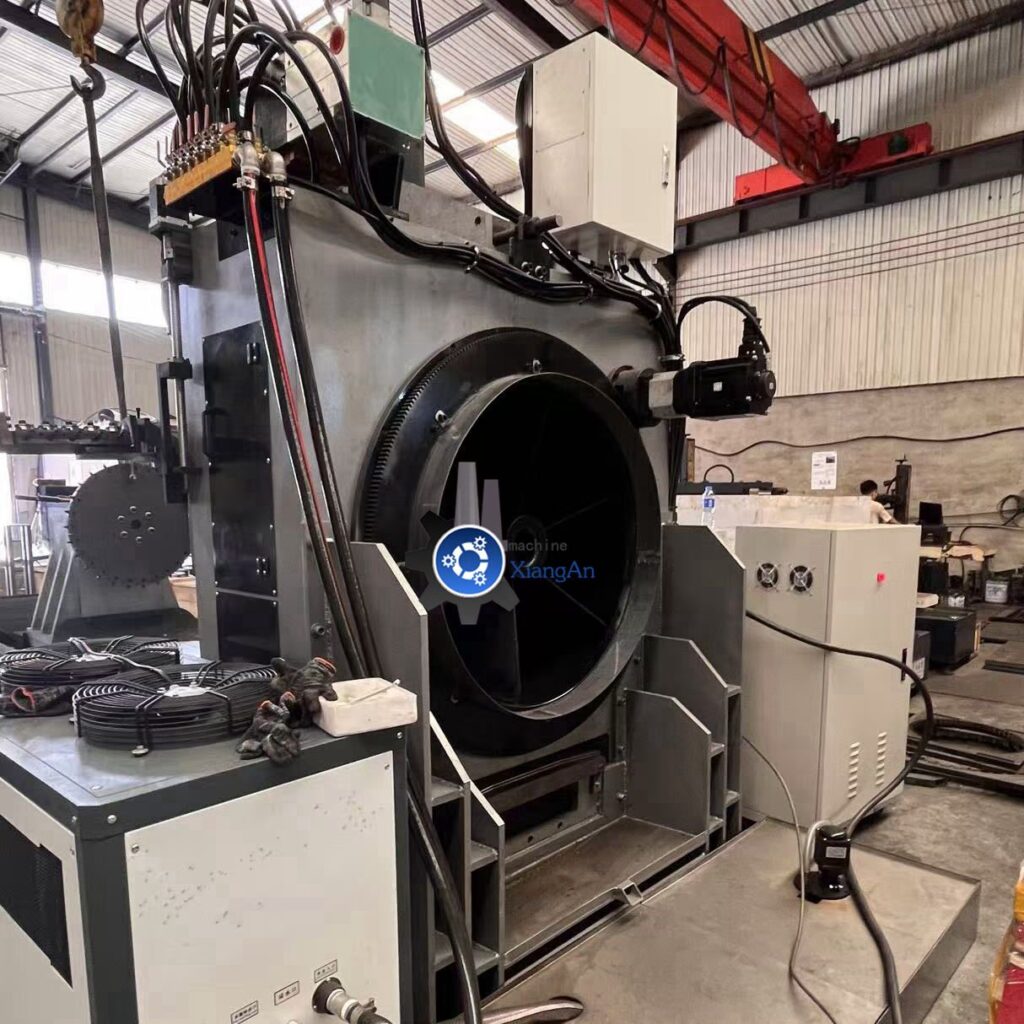

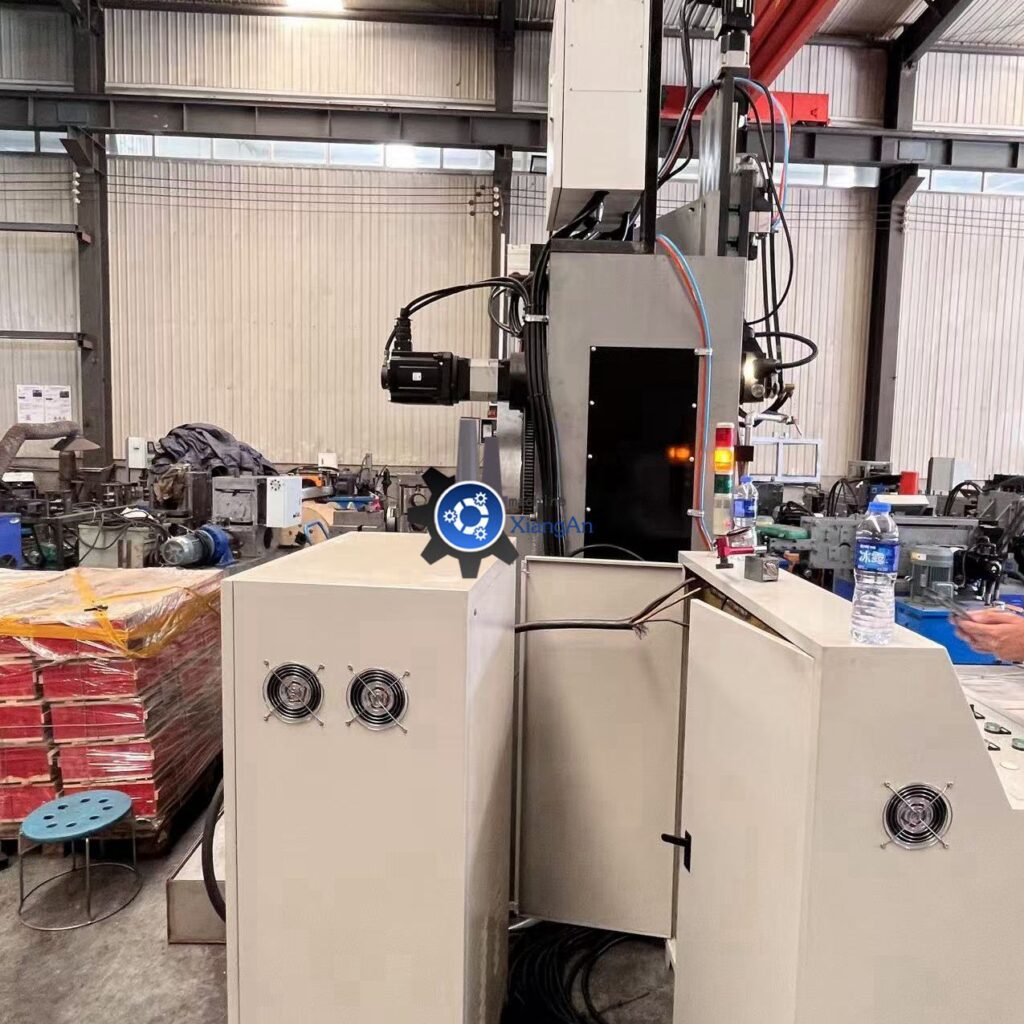

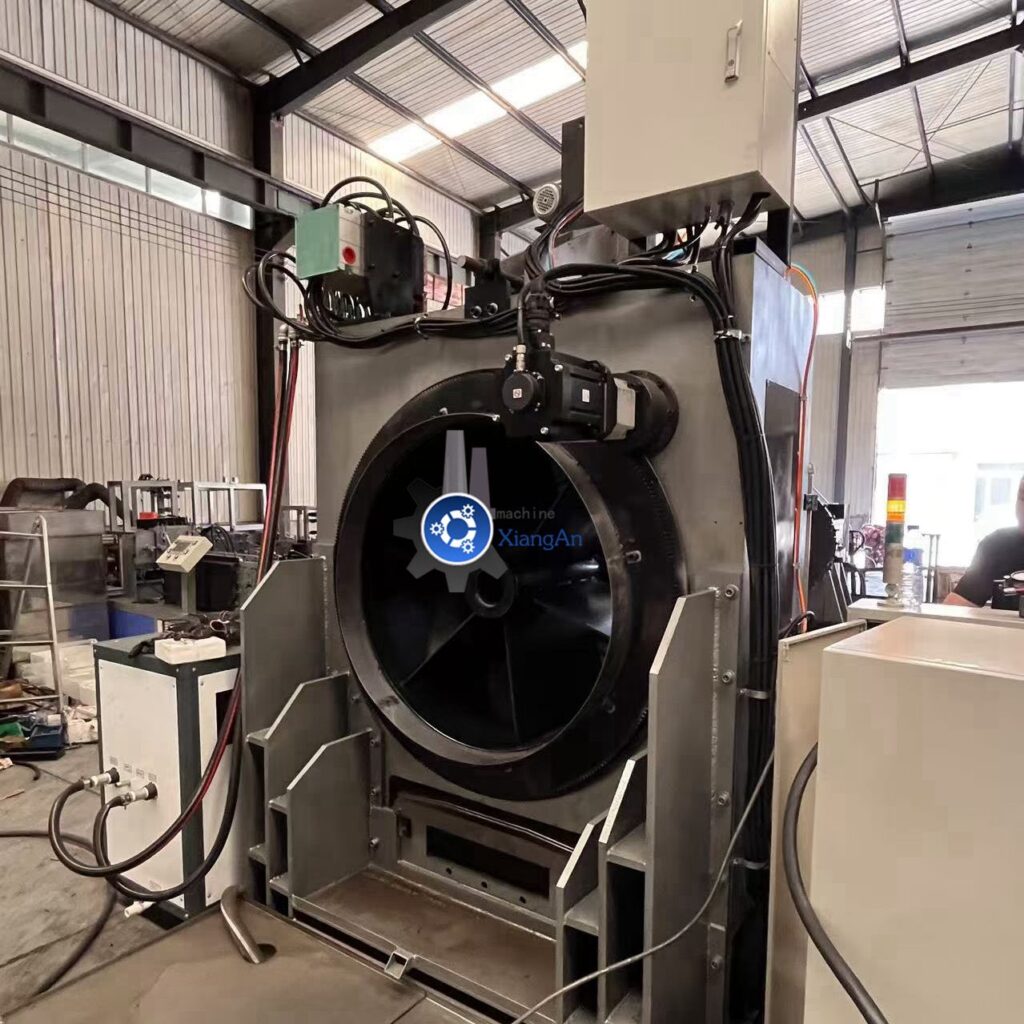

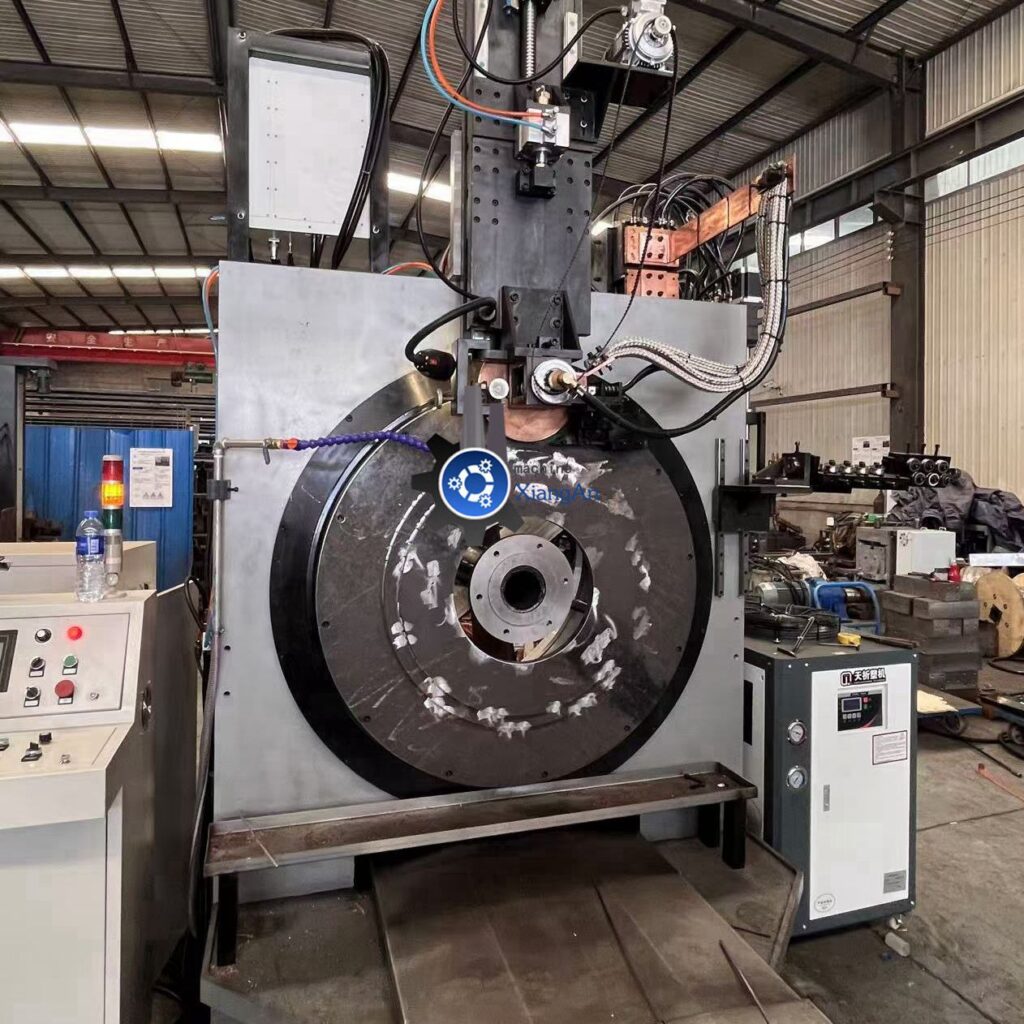

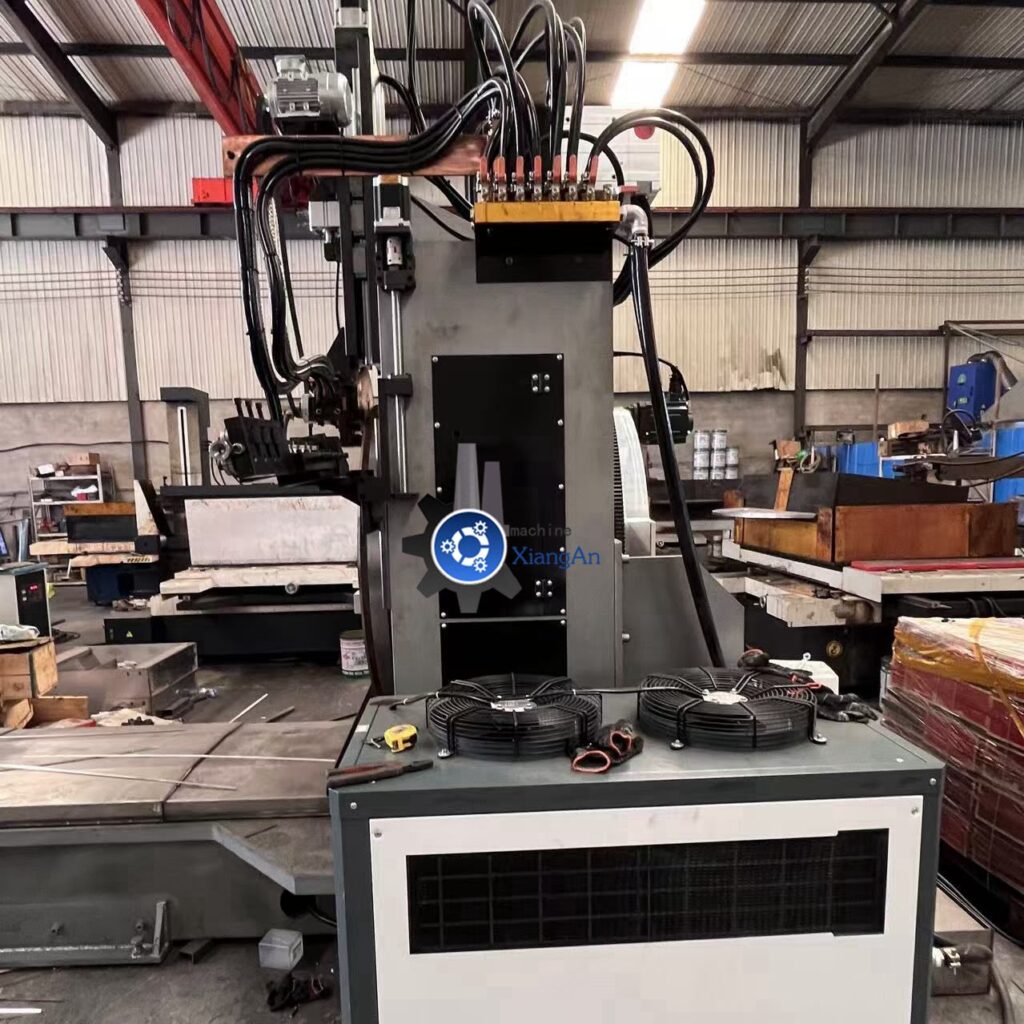

Machine pictures
Parameters
| Model | wedge-200 | wedge-340 | wedge-500 | wedge-1200 |
| Screen Diameter | 25.4-200mm | 50-340mm | 100-500mm | 400-1200mm |
| Slot Hole Size | Min.0.02mm | Min.0.1mm | Min.0.2mm | Min.0.2mm |
| Screen Size | Max.3000mm | Max. 6000mm | Max. 6000mm | Max. 4500mm |
| Wire Range | 0.75-1.5 | 1.2-3mm | 1.2-3mm | 1.5-5mm |
| Speed | 35-1200r/min | 20-120r/min | 15-60r/min | 6-20r/min |
| Dimension | 6*1.5*3.3mm | 13*1.5*3.3m | 13*1.5*3.3m | 11*2.1*3.8m |
| Weight | 9500kgs | 9800kgs | 11000kgs | 15600kgs |
| Welding Power | 100KVA | 200KVA | 200KVA | 20KVA |
| Wire Material | SS304,SS316L,SS201,SS2005 ect. | |||
| Voltage | 3 phase, 380V/220V/440V/415V/600V, 50/60Hz | |||
| Welding Precision | If the wire tolerance is within 0.01mm, the welding precision will be within 0.04mm | |||

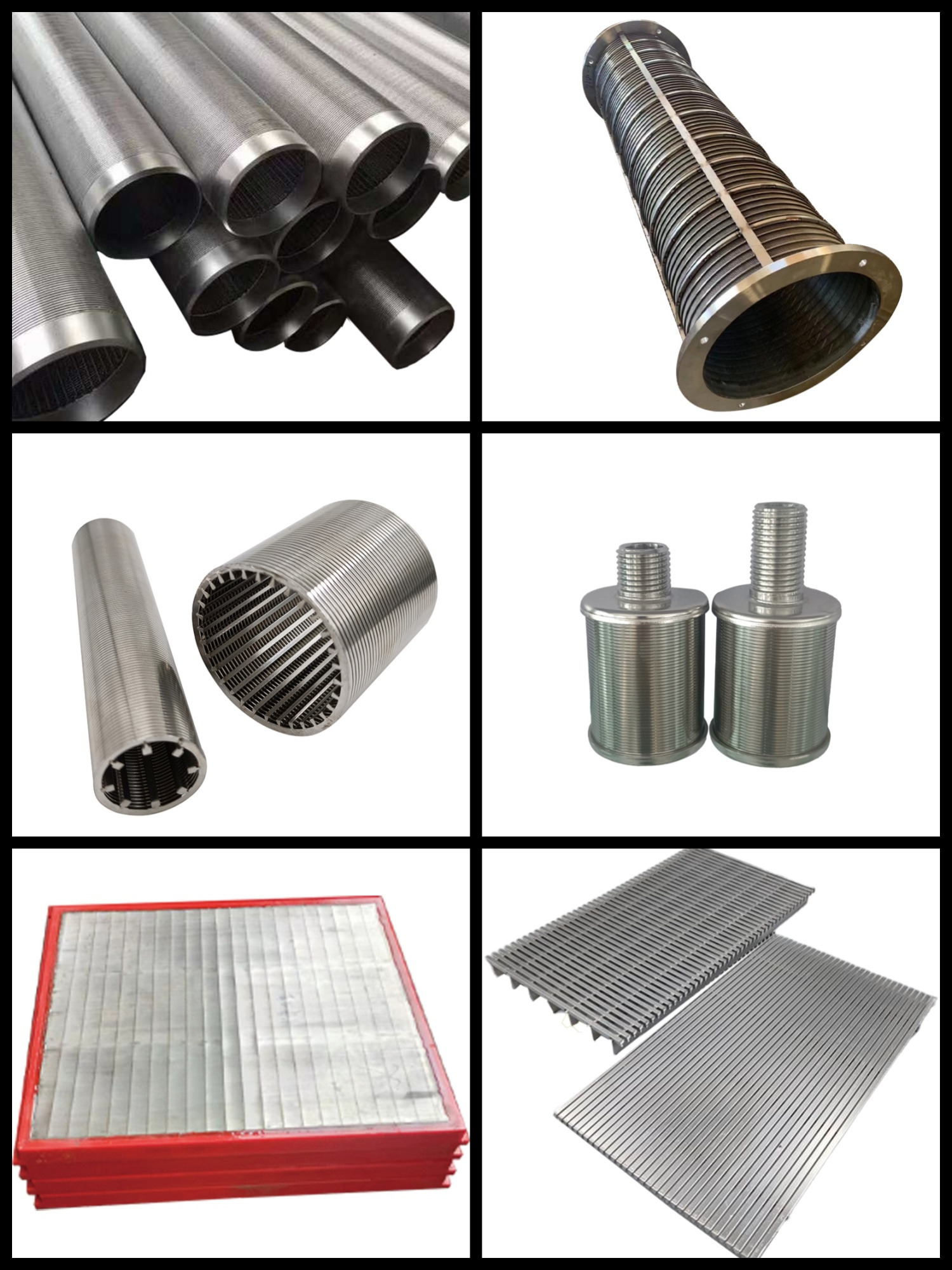

Wedge wire screen display
